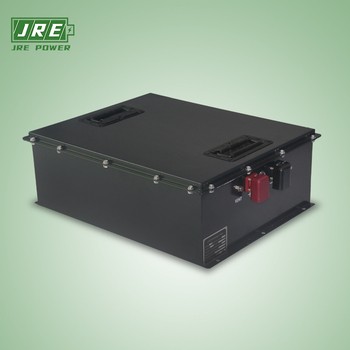

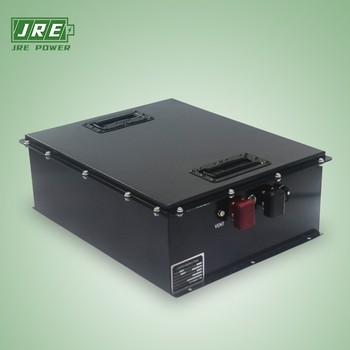

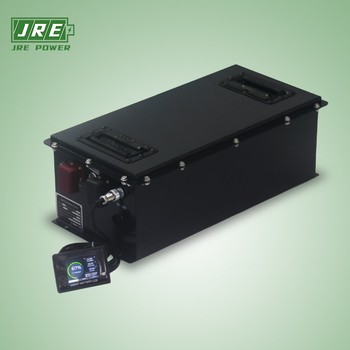

Golf cart 48V 150Ah Lifepo4 battery

Product Item:JSZG27135P

Description

48V 150Ah phosphate battery pack golf cart lithium battery

JSZ-G27135P was designed by battery suppliers JREPower, assembled by lithium phosphate battery cells. JREPower's golf cart battery 48V 150Ah lifespan is over 5000times. Our professional golf cart battery's weight is about 69 kg±3kg (152.1±6.6 Lb), which makes the battery last longer when you want to use them for a day. Please contact us before you want get one lithium battery for your golf cart, in order to optimally match the golf cart to the application.
Cycle Life Details :

Over 4500 Life Cycles at 1C = 150A / 1-Hour Time Discharge to 80% Depth DOD
Over 6000 Life Cycles at 1C = 150A / 1-Hour Time Discharge to 30% Depth DOD
Discharge Slower, and Charge Slower, while maintaining and storing the battery Indoors at Standard Room Temperatures 40F, and you can see Life Cycles exceeding 10,000 Life Cycles.

Product Information
Lithium Golf Cart Battery 48V 150Ah

Nominal Voltage: 51.2V
Nominal Capacity: 150Ah
BMS Multi-Protection & LCD Display, Online PC
Longer Operating Time & No Maintenance Required
Lifespan 5000+ Times & Extreme Temp Performance
Dimensions and Function Can Be Customized
200 Amps Continuous Working Current

Basic Parameters

Battery Model	JSZ-G27135P
Energy	7680Wh(51.2V 150Ah)
Nominal Voltage	51.2V(16S)
Operating Voltage Range	44.8V~57.6V
Cell Technology	Lithium Iron Phosphate (LiFePO4)
Cycle Life	5000 cycles@80%DOD
Design Life	15+ Years(25ºC@77ºF)
Dimension	540 * 440 * 300 mm (21.3 * 17.3 * 11.8 inch)
Approx Weight	69 kg±3kg (152.1±6.6 Lb)
External Screen(Optional)	with 2m cable
Communication(Optional)	RS485,UART,Bluetooth
Operating Temperature	-20ºC~65ºC
Relative Humidity	5%~95%
Cooling	Natural Convection and Fan Cooling
Parallel Connection	Optional (up to 16p)
Installation Form	Plug and Plug
BMS Protection Function	Overcharge/Overdischarge/Overtemperature/Overcurrent/Short Circuit
OEM	Support customization of enclosure/ capacity/ display/ Bluetooth etc

High Safety

Low-thermal-runaway-rate LFP battery; Bidirectional active equalization and triple-layered safety protection in BMS design; 7mm insulation distance for safety and reliability; optimized solution in anti-thermal runaway and anti-leakage design.
Easy O&M
Convenient operation and maintenance; Modular design, easy for installation and capacity expansion; 19 inch standard cabinet, small in size, light in weight and low in O&M operation.
Smart management Real-time monitoring.
The accuracy of SOC is better than 3% for the whole system; Intelligent air cooling design for stable operation; Equipped with interactive display, Bluetooth and RS485 communication
